Bridge Deck Wear-Resistant Surface: Ensuring a safe FRP Bridge Deck

All FRP Bridge Decks by krafton® feature a TÜV-tested non-slip wear-resistant surface. In addition to the R12 and R13 evaluation groups of slip resistance, our wear-resistant surfaces also comply with Class E of fire resistance (according to EN13501-1:2007+A1:2009 and ISO11925-2:2010).

Thanks to carefully constructed wear-resistant surface layers, we can guarantee long-term and safe use for the intended conditions. In this way, the wear-resistant surface provides an FRP Bridge Deck without slippery spots, and thus reliable non-slip properties during use. The grain layers vary in size from 0.7 – 3mm.

Long lifespan
Corrosion- and chemical-resistant
Non-slip
Any colour possible
Easy to repair
Also possible with 2 colors on 1 plank
Flexible

In addition to providing a reliable, safe surface, the krafton® wear layer also protects the material underneath the wear layer. This includes the GRP bridge deck construction, but also the foundation, substrate, steel, plastic, or other types of raw materials on which the wear layer is applied.

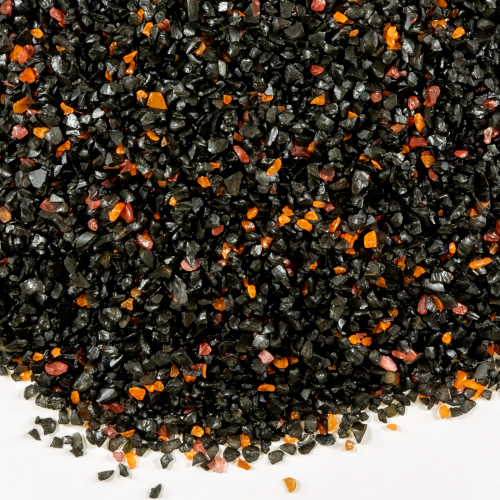

Natural Anthracite

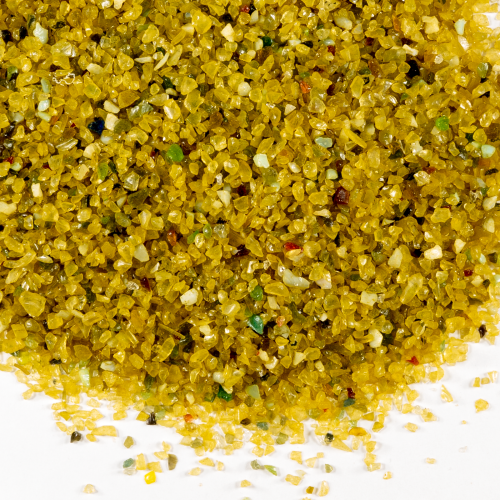

Sand color

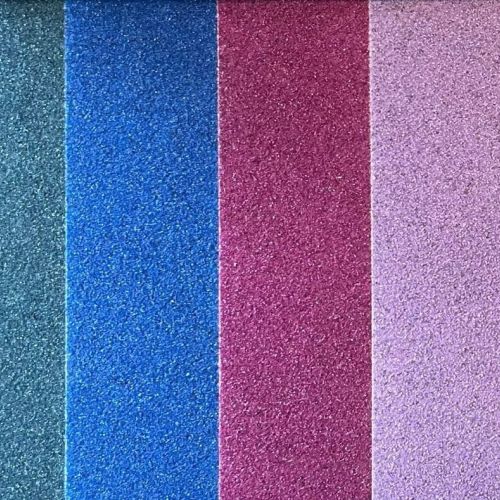

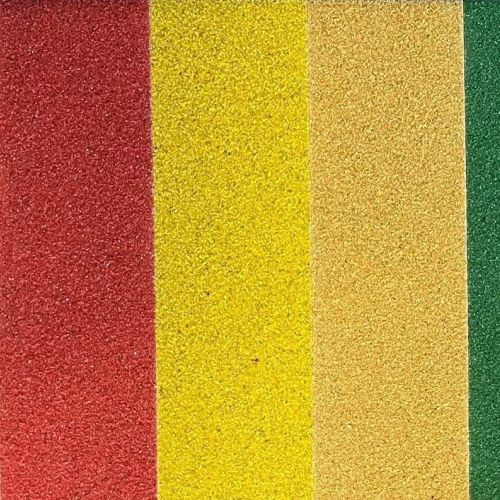

Other colors

2 colors of wear-reststant surface

It is possible to have us apply 2 colors of wear-reststant surface on 1 plank. This allows a clear distinction between the walking and cycling areas of the bridge deck planks. Ideal for a combined road surface! Would you like more information about the possibilities? Feel free to contact us without obligation.

Please contact us

More information about non-slip wear-resistant surfaces

What is a wear-resistant surface?

A wear-resistant surface facilitates safe use of the surface, as well as protection of the underlying structure from wear and tear. Wear-resistant surfaces on FRP Bridge Decks are mad of, among other things, infill materials such as fire-dried sand, emery or porphyry. The size of these aggregated, fine, ferrous mineral grains varies between 0.7 and 3 mm, depending on the application. Together, the wear-resistant surface and granules act provide non-slip properties and facilitate safe use of the FRP Bridge Deck. Moreover, the wear-resistant surface also protects the underlying structure.

Applying the wear-resistant surface to FRP bridge deck

Applying the wear-resistant surface to an FRP Bridge Deck is done fully automatically and conditioned in our factory. Because we apply the wear-resistant surface in-house, it is possible for you, the customer, to put together the wear-resistant surface of your choice. In addition, we can perform this work in a in a short period of time. When composing your wear-resistant surface, you can choose from different colours and, depending on application, available grain sizes. This page lists some of our most popular wear-resistant surface combinations.

Topcoat (as an extra option)

The top coat is a liquid-tight high-density sealing that encloses all glass particles, preventing grains from coming loose. In some specifications, this may be mandatory. If the grid-layer needs to be walked upon with bare feet, we recommend this top layer, so that no grains will stick under the feet while walking.

Intensive testing of wear-resistant surface for FRP Bridge Deck

We have developed the method we use to apply a wear-resistant surface on our FRP Bridge Deck in close cooperation with our supplier Resiplast. Based on intensive testing and decades of experience, this method guarantees reliable non-slip and long-life wear-resistant surfaces. As a manufacturer of FRP, we can, therefore, offer a multi-year warranty on our FRP Bridge Deck wear-resistant surfaces.

In case of unforeseen events and vandalism, our FRP Bridge Deck wear-resistant surfaces are easily repaired. For example, we have developed a method with which we can professionally repair damage almost invisibly.

Download

Download our Wear Resistant Surface flyer here for more information.
